machsec - detecting XNU binary mitigations

• 35 min read •
#binary analysis #analysis

What is machsec?

Machsec is a custom tool I wrote to identify security mitigations on MachO binaries on iOS/macOS. The idea came to mind when I realized there is no “checksec” equivalent for these platforms, not one that can detect the unique mitigations that are present on these operating systems. Since the mitigations are super unique, and don’t exist in any other operating system. Writing a tool from scratch was necessary. Detecting mitigations present in a binary are a crucial step in understanding what kind of exploits need to be found and abused in order to gain arbitrary code execution in them. For example, you can not preform a ROP attack if all of your instruction pointers are signed. What are signed pointers? There is no such thing on other platforms? this is exactly the issue I tried to solve with this program.

Mitigations

Every operating system has mitigations put in place to make exploitation more difficult. Mitigations usually come in 3 flavors:

  • Operating system level (ASLR/KASLR for example)
  • Compiler level (Inserting canaries into the stackframe)
  • Hardware level + operating system level+compiler level (SMAP/SMEP, PAC)

Most operating systems implement the basic common mitigations that are ubiquitous, But macOS and iOS are by far the most mitigation rich operating systems out there.

I will now attempt to break down almost every single major mitigation on XNU systems, Mostly mitigations that exist on the Compiler Level / Hardware level.

Stack Canaries

What are stack canaries?

Stack canaries are one of the most common mitigations you are going to find on an operating system. Stack canaries started becoming a thing after the phrack article “Smashing the stack for fun and profit”, where the famous technique “stacksmashing” was popularized, also known by its other name, a stack overflow. To understand what stack canaries are, it is integral to have a firm grasp on assembly language and how a modern computer works. I highly recommend reading up on how assembly language works, and returning to this article afterwards, in order for things here to make sense. But put simply, Every function you implement and use in any modern low level programming language, will set up a memory region for itself, called the “Stack”. It’s a Last-in-first-out sort of data structure, where data like variables amongst other interesting things is stored for functions to make use of. One of those interesting things is something called the return address. Put simply, it’s the memory address location of where to go after the function has finished running, more specifically, it’s the address of the function that previously called that function. For example, let’s imagine the following: function main --(calls)--> function printf() If there’s more logic in main after the printf, printf would need to know how to return to main. In the stackframe of printf, the instruction pointer to go back to main is present. The stack layout of a program’s function might look something like this (the stackframe):

(represented as some sort of weird abomination of a stack)

---- <- $bp (base pointer of stackframe)
int i = 0x1337;
int j = 0x41;
stack canary = 0xr4nd0mnumb3r
instruction pointer = 0x80000 <-- we want to control this
---- <- $sp (stack pointer)

A stack buffer overflow occurs when we read way too much data and start overwriting adjacent variables. The instruction pointer is just technically another variable on the stack. If we’re not careful when writing to the stack, we could accidentally run it over. The stack canary is there to be intentionally the target of abuse. Let’s take a look at this stack frame after a buffer overflow attack (usually a bunch of A’s):

---- <- $bp (base pointer of stack)
int i = 'AAAAAAAAAAAAAAAAAAAAAAA'
int j = 'AAAAAAAAAAAAAAAAAAAAAAA'
stack canary = 'AAAAAAAAAA' <--- stack canary hit! abort! abort!
instruction pointer = 0x80000 <-- we want to control this
---- <- $sp (stack pointer)

In the actual code of the program, the compiler will insert an additional function before the function returns (reads from the instruction pointer) to check if the canary on the stack matches the value of the canary in a special region of memory similar to.rodata, a region of memory in the binary thats readonly. that the attacker can never write to, since it’s read only. Let’s compare what the code a developer would see, versus, what would actually get executed on a lower level. Here’s our code:

#include <stdio.h>

int main()
{
    char buffer[20];
    fgets(buffer,sizeof(buffer)-1,stdin);
    printf("%s", buffer);
    return 0;
}

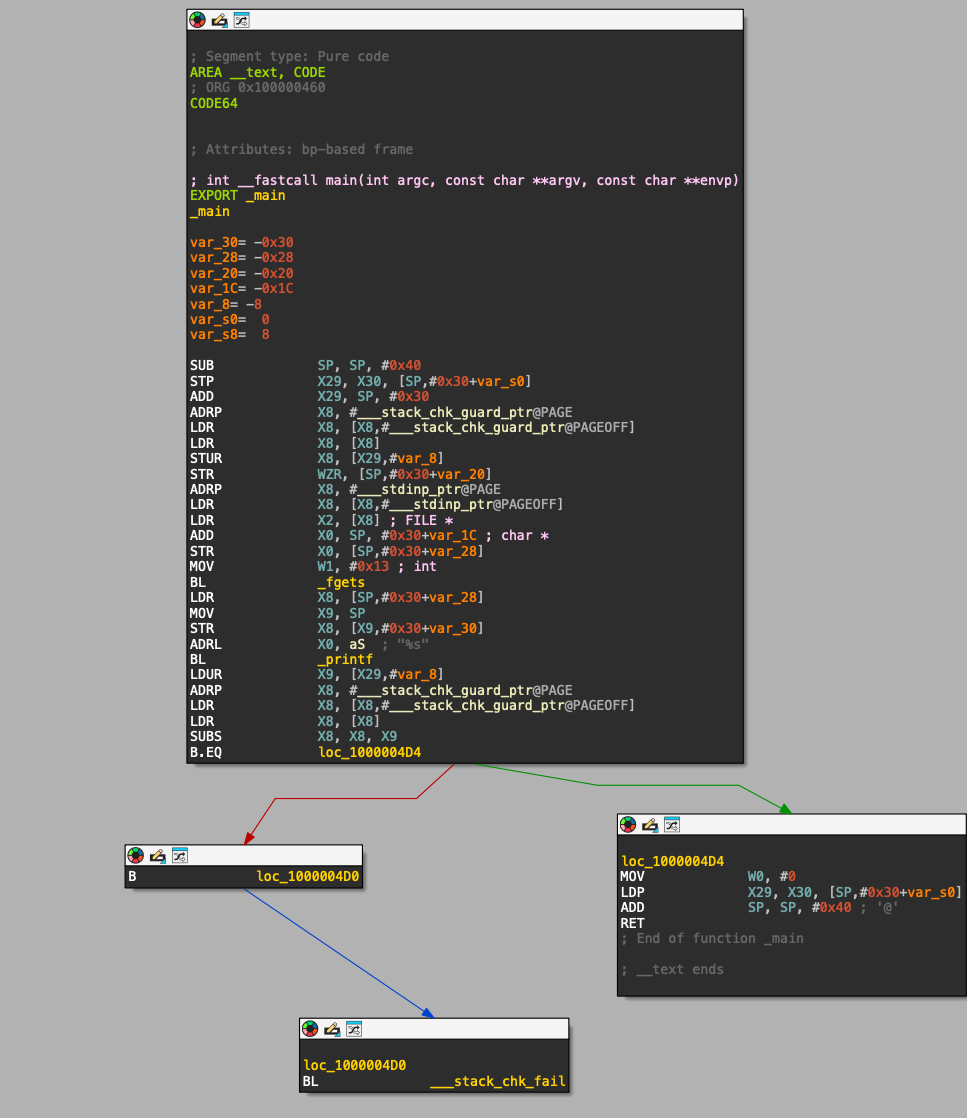

As you can see, pretty clear-cut. The control flow logic would go like this main() --> fgets() --> printf() --> return/end() Let’s take a look at what’s actually happening:

As you can see, a program that should be clear-cut, now has branches, conditional checks, and a call to __stack_chk_fail. The flow looks a little something like this:

main() --> fgets() --> printf()-->check stack canary()--if still the same end()
                                                    |
                                                    |__> else crash cuz something evil is happening()

This clever little mechanism prevents an attacker from controlling where the function goes after finishing execution.

How to detect them in binaries

There are two easy methods to check if there are canaries. You can either check the binary for the functions that handle the canary verification:

Method 1

    if (!res->canary_enabled && macho) {
        struct symtab_command *symtab = macho_get_symtab(macho);
        if (symtab) {
            struct nlist_64 *symbols = (struct nlist_64 *)((char *)macho->data + symtab->symoff);
            char *strings = (char *)macho->data + symtab->stroff;

            for (uint32_t i = 0; i < symtab->nsyms; i++) {
                if (symbols[i].n_un.n_strx > 0 && symbols[i].n_un.n_strx < symtab->strsize) {
                    char *name = strings + symbols[i].n_un.n_strx;
                    if (strcmp(name, "___stack_chk_fail") == 0) {
                        res->canary_enabled = true;
                        break;
                    }
                }
            }
        }
    }

This will of course not be possible since the symbols (names of functions) vanish when the program is stripped and statically linked (packing all of the libraries of the program together into one binary).

Method 2

Or you can look for data that looks like the canary getting moved around:

    for (size_t i = 0; i < count; i++) {
        // Look for x86_64 stack canary offset gs:[0x28] on macOS
        if ((strstr(insn[i].op_str, "gs:[0x28]") || strstr(insn[i].op_str, "gs:0x28")) &&
            (strcmp(insn[i].mnemonic, "mov") == 0)) {
            res->canary_enabled = true;
        }

        // Look for x86 32-bit stack canary offset gs:[0x14] on macOS
        if ((strstr(insn[i].op_str, "gs:[0x14]") || strstr(insn[i].op_str, "gs:0x14")) &&
            (strcmp(insn[i].mnemonic, "mov") == 0)) {
            res->canary_enabled = true;
        }

        // Check for canary validation (x86)
        if (strstr(insn[i].op_str, "gs:[0x28]") && strcmp(insn[i].mnemonic, "xor") == 0) {
            res->canary_enabled = true;
        }

        if (strstr(insn[i].op_str, "gs:[0x14]") && strcmp(insn[i].mnemonic, "xor") == 0) {
            res->canary_enabled = true;
        }

Since the canary is a very unique data type that resides in a particular area of memory, it’s easy to fingerprint its movement around in the program, without even having access to function symbols. 99% of the time, if a datatype that looks like a canary is being moved around, it’s a canary.

Optional method 3

        // ARM64 stack canary detection for iOS devices
        // Look for stack canary loading from thread pointer
        if ((strcmp(insn[i].mnemonic, "ldr") == 0 || strcmp(insn[i].mnemonic, "ldur") == 0) &&
            (strstr(insn[i].op_str, "x18") || strstr(insn[i].op_str, "tpidr_el0"))) {
            res->canary_enabled = true;
        }

        // ARM32 stack canary patterns
        if ((strcmp(insn[i].mnemonic, "ldr") == 0) &&
            (strstr(insn[i].op_str, "pc") && strstr(insn[i].op_str, "___stack_chk_guard"))) {
            res->canary_enabled = true;
        }

        // Check for calls to ___stack_chk_fail (both x86 and ARM)
        if ((strcmp(insn[i].mnemonic, "call") == 0 || strcmp(insn[i].mnemonic, "bl") == 0) &&
            strstr(insn[i].op_str, "___stack_chk_fail")) {
            res->canary_enabled = true;
        }
    }

Arm has special mnemonics for calling and reading canaries, since it’s a more modern architecture built with security in mind. Usually when you see these mnemonics, interacting with registers that are designated for storing canaries, it’s probably a canary being handled.

PIE

What is PIE

PIE, or position independent executable, is another mitigation commonly found on most operating systems. The idea is to randomize where program functions are located in memory, during runtime. This is done to prevent an attacker that might have a stack buffer overflow primitive, from having the ability to easily modify the control flow of the program to suddenly redirect execution to another function. This is done via randomization, making it so that the attacker either has to leak what the address of a function he’s interested in is, or via guessing which is VERY HARD to do.

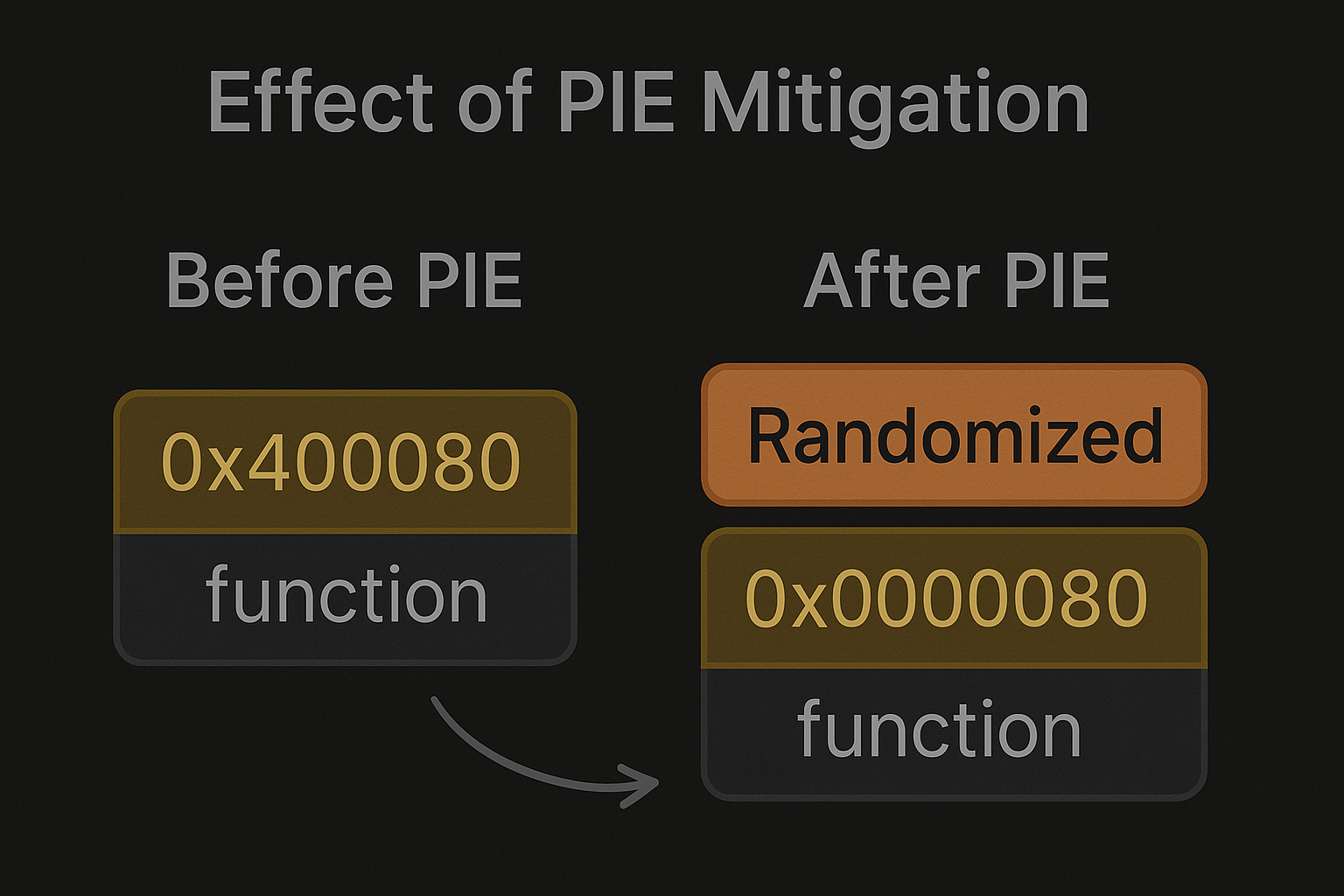

Here’s what a program with and without PIE looks like

Where 0x40080 is the address before PIE, and will always be 0x40080. And 0x00080 is the address after PIE, where the first few zeros will be randomized at runtime. The offset is the 80. PIE randomized the base address, the part that is filled with 00000s. So heres what addresses with and without PIE look like:

  • 0x0000000000400080 (before PIE)
  • 0x00007f8a4b200080 (after PIE)

Note that the 080 part stays the same, thats our offset.

Detecting PIE

Detecting PIE is done via parsing the headers of the Mach-O binary. The headers of the binary are essentially metadata about the binary. The metadata being stuff like:

  • binary type (ELF/Mach-O)

  • binary architecture (arm/x86)

  • which mitigations are enabled (PIE, or NX) Just by parsing the headers, we can glean a bunch of info on the binary. The Mach-O header structure looks like this:

    Key Information:

    1. Magic Numbers: The first 4 bytes identify the file type:
    • 0xfeedface (32-bit Mach-O)
    • 0xfeedfacf (64-bit Mach-O)
    • 0xcafebabe (fat binary containing multiple architectures)
    1. Header Structure (32-bit = 28 bytes, 64-bit = 32 bytes):
  struct mach_header_64 {
      uint32_t magic;      // 0x00: Magic number
      uint32_t cputype;    // 0x04: CPU architecture
      uint32_t cpusubtype; // 0x08: CPU variant
      uint32_t filetype;   // 0x0C: Executable, library, etc.
      uint32_t ncmds;      // 0x10: Number of load commands
      uint32_t sizeofcmds; // 0x14: Size of load commands
      uint32_t flags;      // 0x18: FLAGS INCLUDING MH_PIE!
      uint32_t reserved;   // 0x1C: (64-bit only)
  };
  1. PIE Detection: The MH_PIE flag is located in the flags field at offset 0x18. Its value is 0x00200000. When this bit is set, it indicates the binary supports Position Independent Execution.
  2. Detection Process in machsec

bool detect_pie(struct DetectionResults *res, macho_t *macho) {
    uint32_t flags = macho->is_64bit ? macho->header->flags : ((struct mach_header *)macho->data)->flags;

    if (flags & MH_PIE) {
        res->pie_enabled = true;
        res->pie_text = "PIE enabled";
        res->pie_status = 0;
        res->pie_color = COLOR_GREEN;
        return true;
    } else {
        res->pie_enabled = false;
        res->pie_text = "No PIE";
        res->pie_status = 2;
        res->pie_color = COLOR_RED;
        return false;
    }
}

No eXecute (NX)

Whats NX?

NX or no execute is another mitigation, where we mark the stack/heap region as a non executable area of memory. The reason this is done, is because attackers used to be able to for example, abuse a buffer overflow to write a bunch of malicious program logic (straight up native assembly to the stack) and then just tell the program to execute the data in the stack memory region. The NX mitigation just straight up marks the entire memory region as a read/write memory region ONLY, meaning attackers can no longer place malicious assembly code on the stack, redirect execution to it, and expect it to run.

Detecting NX

In order to detect NX, machsec does the following for the heap and the stack:

  1. NX Heap (detect_nx_heap):
    • Looks for __HEAP segment
    • Falls back to SEG_DATA segment if no heap segment
    • Checks if VM_PROT_EXECUTE (0x04) bit is set in initprot
  2. NX Stack (detect_nx_stack): - Looks for __STACK segment - Checks if VM_PROT_EXECUTE bit is set in initprot - Assumes NX enabled if no explicit stack segment (modern macOS default)

And here’s how it’s implemented in the code of machsec, for the stack and the heap respectively. Stack:


    // Check stack segments for NX protection
    struct segment_command_64 *stack_seg = macho_find_segment(macho, "__STACK");

    bool stack_nx = true;

    // Check if stack segment exists and is executable (bad for NX)
    if (stack_seg && (stack_seg->initprot & VM_PROT_EXECUTE)) {
        stack_nx = false;
    }

Heap:

    // Check heap segments for NX protection
    struct segment_command_64 *data_seg = macho_find_segment(macho, SEG_DATA);
    struct segment_command_64 *heap_seg = macho_find_segment(macho, "__HEAP");

    bool heap_nx = true;

    // Check if heap segment exists and is executable (bad for NX)
    if (heap_seg && (heap_seg->initprot & VM_PROT_EXECUTE)) {
        heap_nx = false;
    }

    // If no explicit heap segment, check data segment (where heap allocations often go)
    if (!heap_seg && data_seg && (data_seg->initprot & VM_PROT_EXECUTE)) {
        heap_nx = false;
    }

RPATH/RUNPATH

What is rpath/runpath

Rpath and runpath specify the paths where libraries are stored on the system. for the program to use and load, at runtime. The reason these are dangerous is due to the fact an attacker could replace these libraries with modified libraries and thus control code execution, if the paths defined are areas where the attacker can write code (the same dir as the binary, folders shared amongst users, etc).

How to detect rpath/runpath

Detection Process

  1. Iterate Through Load Commands
  struct load_command *cmd = macho->load_commands;
  uint32_t ncmds = macho->is_64bit ? macho->header->ncmds : ((struct mach_header *)macho->data)->ncmds;

  for (uint32_t i = 0; i < ncmds; i++) {

  // The tool walks through all load commands in the Mach-O binary header.

  2. Check for LC_RPATH Commands

  if (cmd->cmd == LC_RPATH) {
      has_rpath = true;
  }

When it finds an LC_RPATH load command, it sets has_rpath = true. This indicates the binary has embedded library search paths.

  1. Check for @rpath Usage in Library Dependencies
  else if (cmd->cmd == LC_LOAD_DYLIB) {
      struct dylib_command *dylib = (struct dylib_command *)cmd;
      char *path = (char *)dylib + dylib->dylib.name.offset;
      if (strstr(path, "@rpath")) {
          has_runpath = true;
      }
  }

For each LC_LOAD_DYLIB command (library dependency), it:

  • Extracts the library path string
  • Checks if the path contains @rpath using strstr()
  • If found, sets has_runpath = true

What It’s Actually Looking For

  1. LC_RPATH entries: Hardcoded search paths like /usr/local/lib, /opt/lib, etc.
  2. @rpath placeholders: Library paths like @rpath/MyFramework.framework/MyFramework

Example Mach-O Structure

  Load Commands:
  ├── LC_RPATH: /usr/local/lib        ← Detected as RPATH
  ├── LC_LOAD_DYLIB: @rpath/lib.dylib ← Detected as @rpath usage
  └── LC_LOAD_DYLIB: /usr/lib/libc.dylib ← Safe, ignored

FORTIFY

What is fortify?

Fortify is a compiler flag to replace common memory unsafe functions with functions that have bounds checking. This mitigation is purely compiler level, and was created by the GNU compiler later adopted by clang. The main functions it targets are stuff like memcpy() and memmove(). It’s a relatively weak mitigation, but still something to be aware of.

How to detect fortify

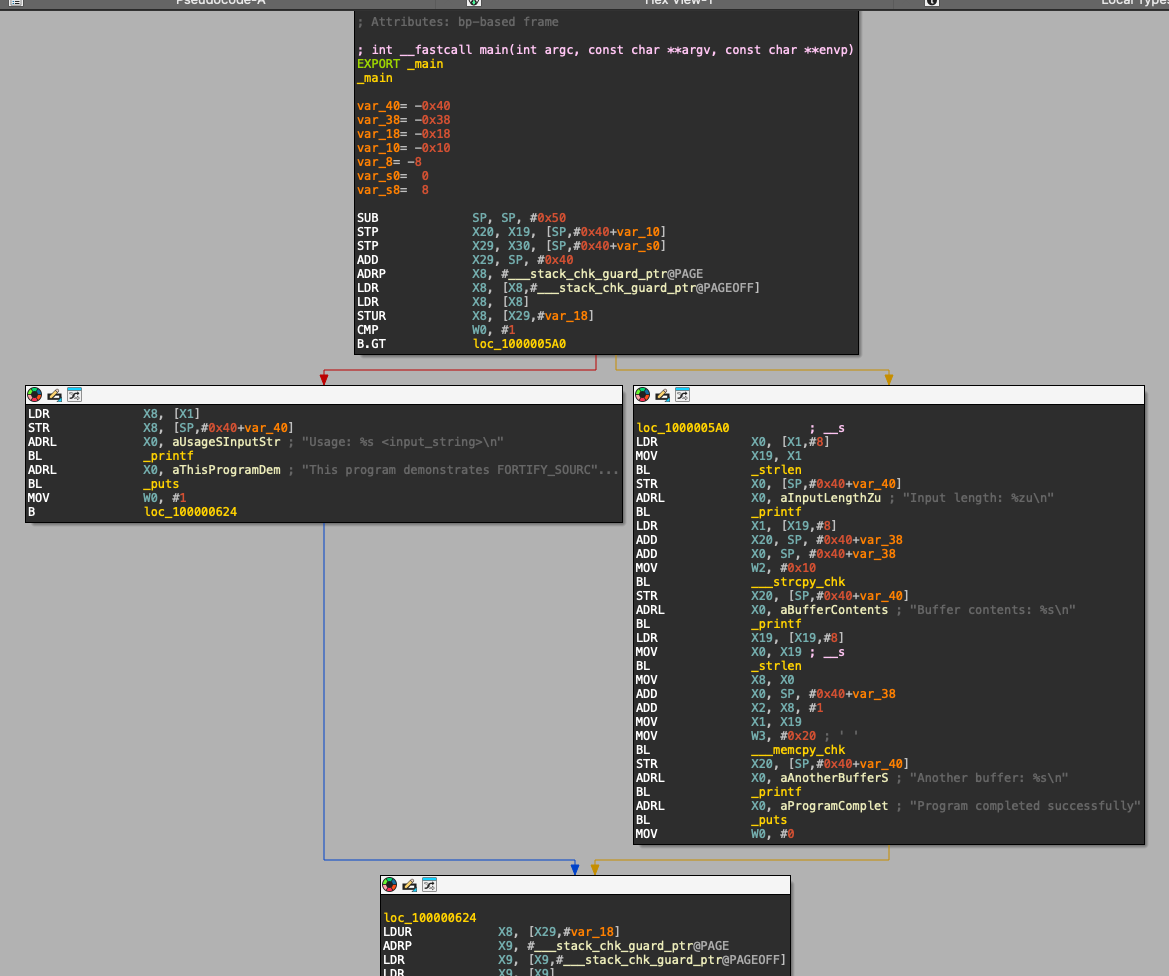

This mitigation modifies the way the functions work, which means the way the code looks at the assembly level is also different from a binary that was compiled without this mitigation.

As you can see, the memory unsafe functions like memcpy are now called __memcpy_chk(). Essentially meaning the memcpy function was replaced on the linking level with a more secure version. If we just look for these symbols, we can detect this mitigation. And here’s what the code for the detection mechanism looks like:

bool detect_fortify(struct DetectionResults *res, macho_t *macho) {
    struct symtab_command *symtab = macho_get_symtab(macho);
    if (!symtab) {
        res->fortify_text = "No symbols";
        res->fortify_status = 1;
        res->fortify_color = COLOR_YELLOW;
        res->fortified_count = 0;
        return false;
    }

    struct nlist_64 *symbols = (struct nlist_64 *)((char *)macho->data + symtab->symoff);
    char *strings = (char *)macho->data + symtab->stroff;

    int fortified_count = 0;
    const char *fortified_functions[] = {
        "memcpy_chk", "strcpy_chk", "strcat_chk", "sprintf_chk", "snprintf_chk",
        "vsprintf_chk", "vsnprintf_chk", "gets_chk", "fgets_chk", "memset_chk",
        "stpcpy_chk", "stpncpy_chk", "strncpy_chk", "strncat_chk", "vprintf_chk",
        "printf_chk", "fprintf_chk", "vfprintf_chk", "read_chk", "recv_chk",
        "recvfrom_chk", "readlink_chk", "getwd_chk", "realpath_chk", "wctomb_chk",
        "wcstombs_chk", "mbstowcs_chk", "mbsrtowcs_chk", "wcrtomb_chk", "wcsrtombs_chk"
    };

    for (uint32_t i = 0; i < symtab->nsyms; i++) {
        if (symbols[i].n_un.n_strx > 0 && symbols[i].n_un.n_strx < symtab->strsize) {
            char *name = strings + symbols[i].n_un.n_strx;

            // Remove leading underscore if present (common in Mach-O)
            if (name[0] == '_') name++;

            // Check against known fortified functions
            for (size_t j = 0; j < sizeof(fortified_functions) / sizeof(fortified_functions[0]); j++) {
                if (strstr(name, fortified_functions[j])) {
                    fortified_count++;
                    break;  // Don't double-count the same symbol
                }
            }
        }
    }

    res->fortified_count = fortified_count;

    if (fortified_count > 0) {
        char *text_buffer = malloc(64);
        if (text_buffer) {
            snprintf(text_buffer, 64, "FORTIFY enabled (%d functions)", fortified_count);
            res->fortify_text = text_buffer;
        } else {
            res->fortify_text = "FORTIFY enabled";
        }
        res->fortify_status = 0;
        res->fortify_color = COLOR_GREEN;
        return true;
    }

    res->fortify_text = "No FORTIFY";
    res->fortify_status = 2;
    res->fortify_color = COLOR_RED;
    return false;
}

UBSAN (Undefined behaviour sanitizer)

What is UBSAN?

UBSAN is a compiler level mitigation that introduces more checks into the program similarly to stack canaries (We mitigate against exploits by adding checking functions into the code) UBsan aims to catch undefined behaviors like integer bugs (int overflow, int underflow signedness bugs). Amongst other things.

How to detect ubsan?

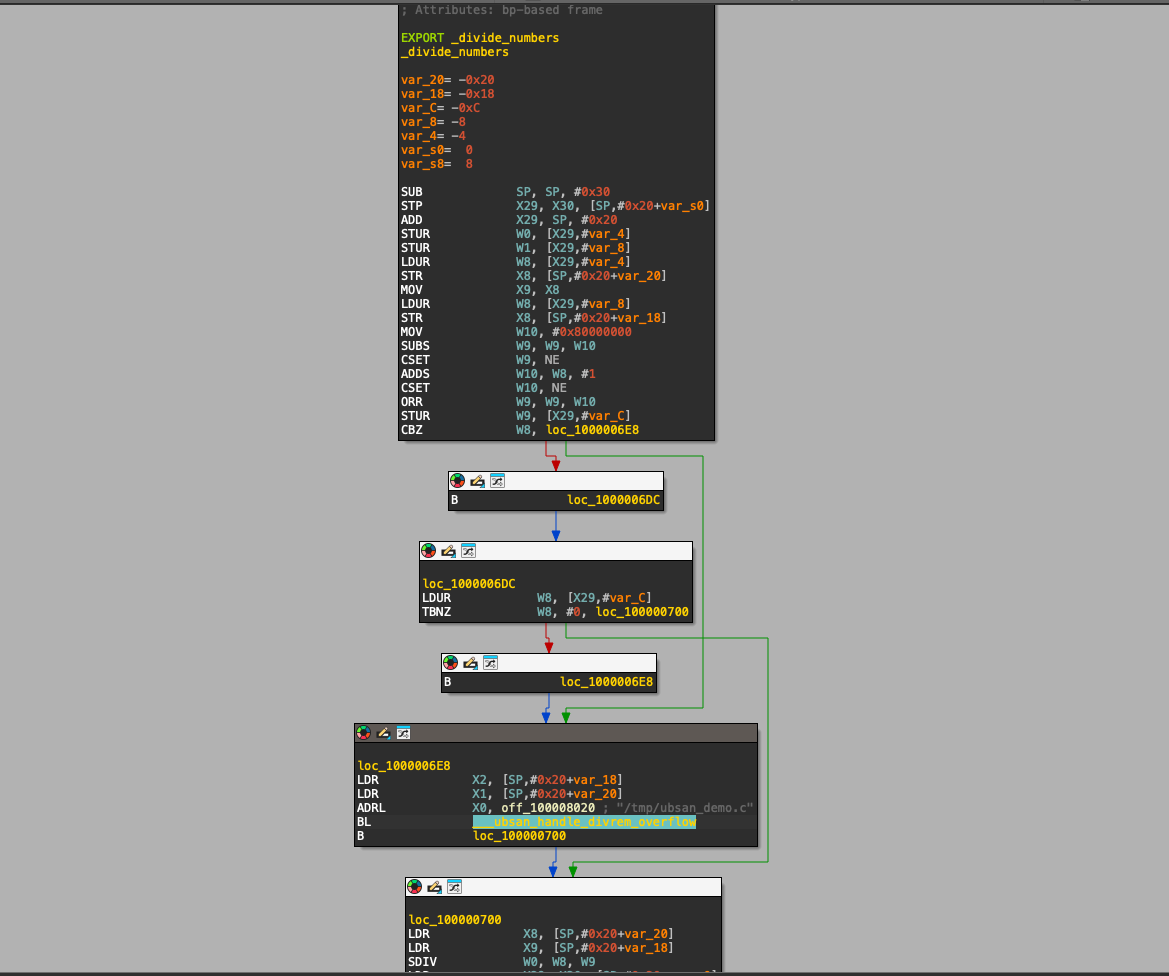

As you can see, we get a new function inserted into our code, all we have to do is look for this symbol, and then we will know if ubsan is enabled or not. Very similar idea to how detecting fortify works.

bool detect_ubsan(struct DetectionResults *res, macho_t *macho) {
    struct symtab_command *symtab = macho_get_symtab(macho);
    if (!symtab) {
        res->ubsan_text = "No symbols";
        res->ubsan_status = 1;
        res->ubsan_color = COLOR_YELLOW;
        return false;
    }

    struct nlist_64 *symbols = (struct nlist_64 *)((char *)macho->data + symtab->symoff);
    char *strings = (char *)macho->data + symtab->stroff;

    for (uint32_t i = 0; i < symtab->nsyms; i++) {
        if (symbols[i].n_un.n_strx > 0 && symbols[i].n_un.n_strx < symtab->strsize) {
            char *name = strings + symbols[i].n_un.n_strx;

            if (strstr(name, "__ubsan") || strstr(name, "__sanitizer") || strstr(name, "_ubsan_handle")) {
                res->ubsan_text = "UBSan enabled";
                res->ubsan_status = 0;
                res->ubsan_color = COLOR_GREEN;
                return true;
            }
        }
    }

    res->ubsan_text = "No UBSan";
    res->ubsan_status = 2;
    res->ubsan_color = COLOR_RED;
    return false;
}

ASAN (Address Sanitizer)

What is ASAN?

The address sanitizer mitigation is primarily used in conjunction with fuzzers to try and spot vulnerabilities like the powerful OOBW (Out of Bounds Write) exploit primitive. It works in much the same way as the previously discussed mitigations, and can be enabled with a compiler flag. However, the tradeoff to using this mitigation is huge since it adds a bunch of checks and functions to the program, which significantly reduces the performance of the program.

Detecting ASAN

Detecting ASAN works in much the same way as the previously discussed mitigations Here’s what a binary with the asan checks looks like:

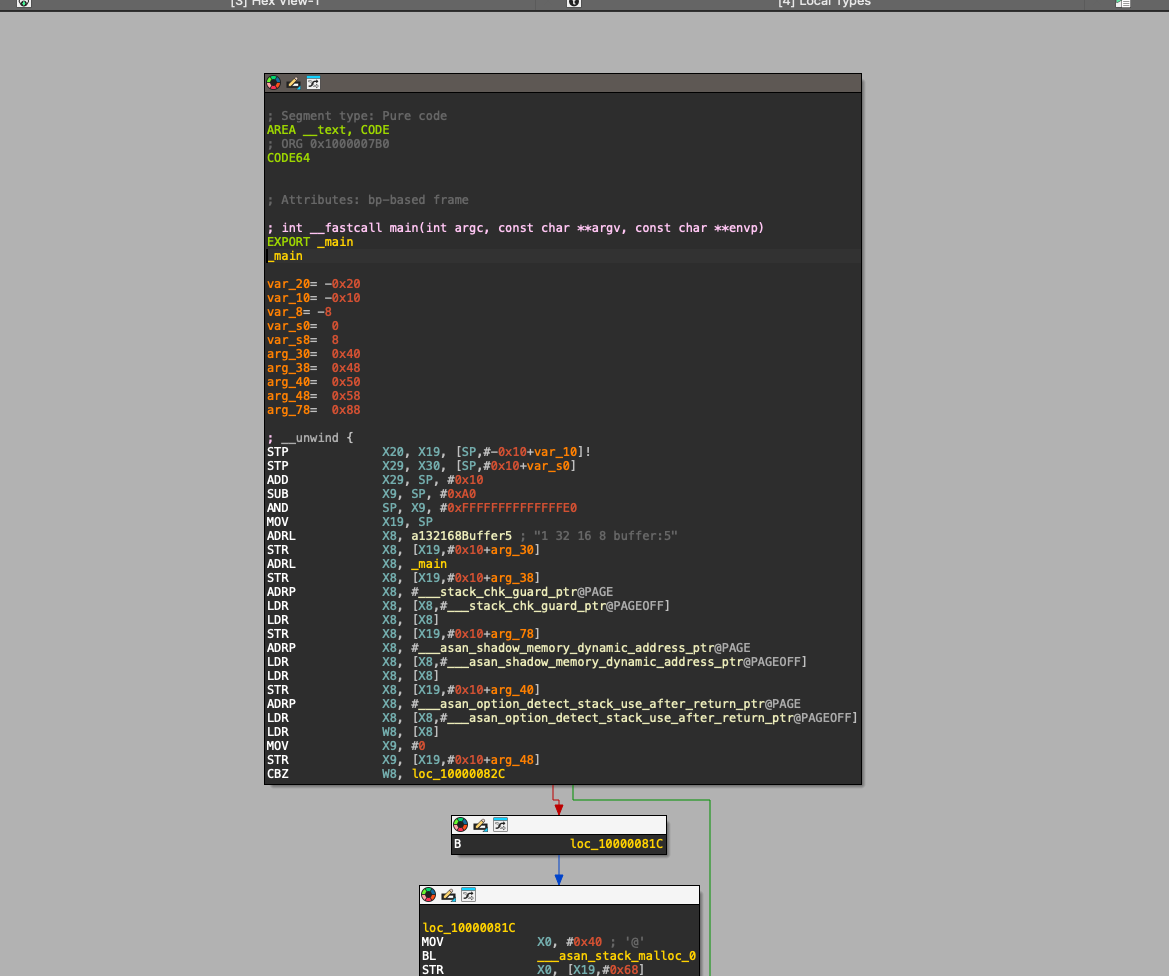

As you can see, a bunch of asan functions get added. And here’s how the code detects asan:

bool detect_asan(struct DetectionResults *res, macho_t *macho) {

    struct symtab_command *symtab = macho_get_symtab(macho);
    if (!symtab) {
        res->asan_text = "No symbols";
        res->asan_status = 1;
        res->asan_color = COLOR_YELLOW;
        return false;
    }

    struct nlist_64 *symbols = (struct nlist_64 *)((char *)macho->data + symtab->symoff);
    char *strings = (char *)macho->data + symtab->stroff;

    for (uint32_t i = 0; i < symtab->nsyms; i++) {
        if (symbols[i].n_un.n_strx > 0 && symbols[i].n_un.n_strx < symtab->strsize) {
            char *name = strings + symbols[i].n_un.n_strx;

            if (strstr(name, "__asan") || strstr(name, "__sanitizer_cov") || strstr(name, "__interceptor_malloc")) {
                res->asan_text = "ASAN enabled";
                res->asan_status = 0;
                res->asan_color = COLOR_GREEN;
                return true;
            }
        }
    }

    res->asan_text = "No ASAN";
    res->asan_status = 2;
    res->asan_color = COLOR_RED;

CFI (Control Flow Integrity)

What is CFI?

CFI is an attempt at ensuring a program’s proper control flow via in-program checks much like the functions we have seen inserted into programs as part of other mitigations like UBSAN, ASAN and canaries. This is the most costly software mitigation of them all, since it will massively increase the binary size, and the performance penalty is huge. Unfortunately, this mitigation mostly applies to Linux/ELF binaries, since modern macOS/xnu machines just use PAC, which is a hardware based implementation of control flow integrity, which I will discuss later in the post.

Detecting CFI

Detecting CFI works much like detecting the other previous instrumentation based mitigations, we just read the symbols from the binary… and we’re done.

bool detect_cfi(struct DetectionResults *res, macho_t *macho) {
    // CFI is less common on macOS, check for symbols
    struct symtab_command *symtab = macho_get_symtab(macho);
    if (!symtab) {
        res->cfi_text = "No symbols";
        res->cfi_status = 1;
        res->cfi_color = COLOR_YELLOW;
        return false;
    }

    struct nlist_64 *symbols = (struct nlist_64 *)((char *)macho->data + symtab->symoff);
    char *strings = (char *)macho->data + symtab->stroff;

    for (uint32_t i = 0; i < symtab->nsyms; i++) {
        if (symbols[i].n_un.n_strx > 0 && symbols[i].n_un.n_strx < symtab->strsize) {
            char *name = strings + symbols[i].n_un.n_strx;

            if (strstr(name, "__cfi") || strstr(name, "_cfi_") || strstr(name, "cfi_check")) {
                res->cfi_text = "CFI enabled";
                res->cfi_status = 0;
                res->cfi_color = COLOR_GREEN;
                return true;
            }
        }
    }

    res->cfi_text = "No CFI";
    res->cfi_status = 2;
    res->cfi_color = COLOR_RED;

Symbols (Symbol Stripping)

What is symbol stripping

Symbol stripping is not a mitigation per se, but a redaction of information that makes life for reverse engineers harder. When you give a function a name in a piece of code, the compiler doesn’t really care/need the function name in order to use the function, just a memory address of where that function is. We humans however really need function names since they help us understand what the function does at a glance without having to read the fun code. Most programs will have their symbols removed so that a reverse engineer will not have the function names, and be left with rather puzzling function names like func_1234() the names of the functions generated obviously depend on your decompiler of choice.

Detecting symbol stripping

We detect symbol stripping via detecting if there are no symbols present, which is quite funny since most mitigations we look for something that exists in the binary, but this one, we look for the nonpresence of something. You can tell how many symbols are in a binary, as well as how many symbols are in the binary total, by just reading the binary headers and metadata

bool detect_symbols(struct DetectionResults *res, macho_t *macho) {
    struct symtab_command *symtab = macho_get_symtab(macho);

    if (!symtab || symtab->nsyms == 0) {
        res->symbols_text = "Fully stripped (0 symbols)";
        res->symbols_status = 0;
        res->symbols_color = COLOR_GREEN;
        return false;
    }

    // Count different types of symbols
    struct nlist_64 *symbols = (struct nlist_64 *)((char *)macho->data + symtab->symoff);
    uint32_t local_syms = 0, external_syms = 0, undef_syms = 0;

    for (uint32_t i = 0; i < symtab->nsyms; i++) {
        if (symbols[i].n_type & N_EXT) {
            external_syms++;
        } else if ((symbols[i].n_type & N_TYPE) == N_UNDF) {
            undef_syms++;
        } else {
            local_syms++;
        }
    }

    char *text_buffer = malloc(128);
    if (!text_buffer) {
        res->symbols_text = "Memory error";
        res->symbols_status = 1;
        res->symbols_color = COLOR_YELLOW;
        return false;
    }

    if (local_syms > 0) {
        snprintf(text_buffer, 128, "Not stripped (%d symbols)", symtab->nsyms);
        res->symbols_text = text_buffer;
        res->symbols_status = 2;
        res->symbols_color = COLOR_RED;
        return true;
    } else if (external_syms > 0 || undef_syms > 0) {
        snprintf(text_buffer, 128, "Partially stripped (%d symbols)", external_syms + undef_syms);
        res->symbols_text = text_buffer;
        res->symbols_status = 1;
        res->symbols_color = COLOR_YELLOW;
        return true;
    } else {
        snprintf(text_buffer, 128, "Fully stripped (0 symbols)");
        res->symbols_text = text_buffer;
        res->symbols_status = 0;
        res->symbols_color = COLOR_GREEN;
        return false;
    }
}

Stack Clashing

What is stack clashing?

Stack clashing is a very rare and recent exploit method that attempts to make the stack region and the heap region of the program to intersect thus corrupting the integral data that lives on the stack, stuff like function pointers, variables, etc.

Detecting stack clashing

Detecting stack clashing, like most mitigations, is just a bunch of instrumentation the compiler adds, a bunch of functions to check that the stack region hasn’t intersected into the heap region. Since it’s not really a thing on macOS/xnu, we can just assume that if canaries are present, that check is also probably present.

Heap cookies

What are heap cookies?

Heap cookies are the same thing as stack canaries, but in the heap. They check that heap chunks haven’t been overflown.

Detecting heap cookies

Detecting heap cookies can be done by checking the symbols in the binary. Here’s how to detect them:

bool detect_heap_cookies(struct DetectionResults *res, macho_t *macho) {
    struct symtab_command *symtab = macho_get_symtab(macho);
    if (!symtab) {
        res->heap_cookies_text = "No symbols";
        res->heap_cookies_status = 1;
        res->heap_cookies_color = COLOR_YELLOW;
        return false;
    }

    struct nlist_64 *symbols = (struct nlist_64 *)((char *)macho->data + symtab->symoff);
    char *strings = (char *)macho->data + symtab->stroff;

    for (uint32_t i = 0; i < symtab->nsyms; i++) {
        if (symbols[i].n_un.n_strx > 0 && symbols[i].n_un.n_strx < symtab->strsize) {
            char *name = strings + symbols[i].n_un.n_strx;

            if (strstr(name, "malloc_zone") || strstr(name, "guard_malloc") || strstr(name, "_malloc_check")) {
                res->heap_cookies_text = "Heap hardening enabled";
                res->heap_cookies_status = 0;
                res->heap_cookies_color = COLOR_GREEN;
                return true;
            }
        }
    }

    res->heap_cookies_text = "No heap hardening";
    res->heap_cookies_status = 2;
    res->heap_cookies_color = COLOR_RED;
    return false;
}

Integer overflow

What is Integer overflow

Integer overflow protection is another instrumentation based mitigation, where we add a bunch of functions to the program to make sure that integers have not exceeded their limits and wrapped around to another value.

Detecting Integer Overflow

Quite like the other mitigations, you can just check for the presence of certain symbols:

bool detect_integer_overflow(struct DetectionResults *res, macho_t *macho) {
    struct symtab_command *symtab = macho_get_symtab(macho);
    if (!symtab) {
        res->integer_overflow_text = "No symbols";
        res->integer_overflow_status = 1;
        res->integer_overflow_color = COLOR_YELLOW;
        return false;
    }

    struct nlist_64 *symbols = (struct nlist_64 *)((char *)macho->data + symtab->symoff);
    char *strings = (char *)macho->data + symtab->stroff;

    for (uint32_t i = 0; i < symtab->nsyms; i++) {
        if (symbols[i].n_un.n_strx > 0 && symbols[i].n_un.n_strx < symtab->strsize) {
            char *name = strings + symbols[i].n_un.n_strx;

            if (strstr(name, "__muloti4") || strstr(name, "__addoti4") ||
                strstr(name, "__ubsan_handle_add_overflow") || strstr(name, "__wrap_")) {
                res->integer_overflow_text = "Integer overflow protection enabled";
                res->integer_overflow_status = 0;
                res->integer_overflow_color = COLOR_GREEN;
                return true;
            }
        }
    }

Sandbox (XNU exclusive)

What is sandboxing?

In general, sandboxing is creating a restricted environment where a binary has limited access to the underlying operating system. In the case of XNU and mitigations, this mitigation does a couple of things:

  • Filter syscalls (A bit like seccomp on Linux) using a kernel feature called seatbelt
  • Check entitlements (what is the binary allowed to access, what kind of hardware, etc.)
  • Apply a sandboxing profile based on the entitlements and the syscalls being filtered.

Detecting sandboxing

We can detect sandboxing either via the symbols present, by checking if the binary is signed, which is also a strong indicator that the binary is sandboxed, and also checking for strings that have to do with entitlements.

bool detect_sandbox(struct DetectionResults *res, macho_t *macho) {
    bool has_sandbox_symbols = false;
    bool has_code_signature = false;
    bool has_entitlements = false;

    // Check for sandboxing symbols
    struct symtab_command *symtab = macho_get_symtab(macho);
    if (symtab) {
        struct nlist_64 *symbols = (struct nlist_64 *)((char *)macho->data + symtab->symoff);
        char *strings = (char *)macho->data + symtab->stroff;

        for (uint32_t i = 0; i < symtab->nsyms; i++) {
            if (symbols[i].n_un.n_strx > 0 && symbols[i].n_un.n_strx < symtab->strsize) {
                char *name = strings + symbols[i].n_un.n_strx;

                // Check for macOS/iOS sandboxing symbols
                if (strstr(name, "sandbox_") ||
                    strstr(name, "_sandbox_init") ||
                    strstr(name, "sandbox_check") ||
                    strstr(name, "sandbox_free_error") ||
                    strstr(name, "container_") ||
                    strstr(name, "_container_create")) {
                    has_sandbox_symbols = true;
                    break;
                }
            }
        }
    }

    // Check for code signature and entitlements
    struct load_command *cmd = macho->load_commands;
    uint32_t ncmds = macho->is_64bit ? macho->header->ncmds : ((struct mach_header *)macho->data)->ncmds;

    for (uint32_t i = 0; i < ncmds; i++) {
        if (cmd->cmd == LC_CODE_SIGNATURE) {
            has_code_signature = true;

            // Try to parse the code signature for entitlements
            struct linkedit_data_command *sig_cmd = (struct linkedit_data_command *)cmd;

            // Look for entitlement data in the signature
            if (sig_cmd->datasize > 0) {
                char *sig_data = (char *)macho->data + sig_cmd->dataoff;

                // Look for common sandbox entitlement strings
                if (sig_cmd->datasize > 20) {  // Minimum size check
                    // Search for sandbox-related entitlement keys
                    if (search_memory(sig_data, sig_cmd->datasize, "com.apple.security.app-sandbox", 31) ||
                        search_memory(sig_data, sig_cmd->datasize, "platform-application", 20) ||
                        search_memory(sig_data, sig_cmd->datasize, "sandbox", 7)) {
                        has_entitlements = true;
                    }
                }
            }
        }
        cmd = (struct load_command *)((char *)cmd + cmd->cmdsize);
    }

    // Determine sandbox status based on evidence
    if (has_sandbox_symbols) {
        res->sandbox_text = "Sandbox enabled (symbols)";
        res->sandbox_status = 0;
        res->sandbox_color = COLOR_GREEN;
        return true;
    } else if (has_entitlements) {
        res->sandbox_text = "Sandbox enabled (entitlements)";
        res->sandbox_status = 0;
        res->sandbox_color = COLOR_GREEN;
        return true;
    } else if (has_code_signature) {
        // Check if this is a system binary (likely sandboxed)
        uint32_t flags = macho->is_64bit ? macho->header->flags : ((struct mach_header *)macho->data)->flags;
        if (flags & MH_PIE) {  // System binaries are typically PIE
            res->sandbox_text = "Likely sandboxed (system binary)";
            res->sandbox_status = 1;
            res->sandbox_color = COLOR_YELLOW;
            return true;
        } else {
            res->sandbox_text = "Code signed (may be sandboxed)";
            res->sandbox_status = 1;
            res->sandbox_color = COLOR_YELLOW;
            return true;
        }
    } else {
        res->sandbox_text = "No sandbox";
        res->sandbox_status = 2;
        res->sandbox_color = COLOR_RED;
        return false;
    }
}

Hardened runtime + SIP + AMFI (XNU Exclusive)

This is a suite of operating system/binary level mitigations unique to macOS, some of them even unique to only iOS

What is Hardened runtime?

The hardened runtime is another mitigation set in place by XNU, set to mitigate against library injection at runtime, debugging, injection of any unsigned code at runtime, dynamic instrumentation, and the like, on a per process basis. as well as adding some unique runtime mitigations. Here’s a breakdown of some of the things it will do:

  • CS_RESTRICT, a Mach-O header in the binary, part of the codesigning section of the binary metadata. blocks task_for_pid(), essentially making the program not attachable by a debugger, unless they have the right entitlements
  • cs_kill kernel kills the process if at any point during runtime signatures do not match
  • Library validation checks that all binaries are signed and have not been modified.
  • JIT Restriction - Just In Time compilation requires a memory region to be writeable & executable, which is a security risk. This mitigation will not allow mmap()ing a memory region that’s both write and execute, unless a specific entitlement is set: com.apple.security.cs.allow-jit
  • Debugging - blocks ptrace() unless there is a specific entitlement: com.apple.security.get-task-allow

What is SIP (System Integrity Protection)

SIP is a suite of these mitigations, that ensures the operating system continues to operate whilst being resilient to malware, exploits, and a stupid user accidentally deleting their entire filesystem because someone told them to rm --rf / SIP can be disabled on macOS via the following command: csrutil -disable And is a must if you want to do any sort of offensive security like dynamically instrumenting a program with FRIDA, run a cracked program with the license validation libraries patched, etc.

Binary Encryption (AMFI)

Apple Mobile File Integrity or AMFI Is another mitigation that exists on XNU, specifically on iOS. The mitigation consists of two components working in tandem:

  • amfid (System Daemon)
  • kernel module (AppleMobileFileIntegrity.kext) Together these two perform the following functions
  • Decrypt encrypted binaries: Binaries have their __TEXT section encrypted, need to have the section decrypted to run properly. The Mach-O header has a LC_ENCRYPTION_INFO load command with:
cryptid=1 (encrypted)
cryptoff (offset to encrypted data)
cryptsize (size of encrypted region)

Where the kernel does the signature verification, amfid verifies cert chains, provisioning profiles, etc.

Detecting SIP/Hardened runtime

Detecting if SIP is enabled on the operating system level is out of the scope of machsec, but it’s safe to assume every XNU based operating system will have it enabled by default. However, not all binaries will have a hardened runtime enabled, so we can definitely check for that in the binary. We can check for the headers in the binary, which tell the kernel how to handle the binary. The same information that helps the kernel, helps us.

bool detect_hardened_runtime(struct DetectionResults *res, macho_t *macho) { // Check for LC_CODE_SIGNATURE load command (both macOS and iOS)
    struct load_command *code_sig = macho_find_command(macho, LC_CODE_SIGNATURE);

    // Also check for iOS-specific security features
    //uint32_t flags = macho->is_64bit ? macho->header->flags : ((struct mach_header *)macho->data)->flags;
    bool has_ios_security = false;

    // Check for iOS App Store binaries (encrypted)
    struct load_command *encryption = macho_find_command(macho, LC_ENCRYPTION_INFO);
    if (!encryption && macho->is_64bit) {
        encryption = macho_find_command(macho, LC_ENCRYPTION_INFO_64);
    }

    if (encryption) {
        has_ios_security = true;
    }

    if (code_sig || has_ios_security) {
        if (has_ios_security) {
            res->hardened_runtime_text = "iOS Security enabled";
        } else {
            res->hardened_runtime_text = "Hardened Runtime enabled";
        }
        res->hardened_runtime_status = 0;
        res->hardened_runtime_color = COLOR_GREEN;
        return true;
    } else {
        res->hardened_runtime_text = "No security hardening";
        res->hardened_runtime_status = 2;
        res->hardened_runtime_color = COLOR_RED;
        return false;
    }
}

Code signing

What is code signing?

Similarly to windows, binaries distributed by known organizations/companies can get a digital signature from Apple, that helps an apple device tell if a piece of software is a genuine copy from the software vendor, if the piece of software has been tampered with, etc.

How does code signing work?

Code signing appends a signature blob at the end of the binary, and there’s a CodeDirectory (a structure containing metadata like flags and an array of SHA256 hashes, one per 4KB page of executable code) with precomputed hashes of every page that will get loaded into the __TEXT segment.

At runtime, the kernel verifies pages lazily via page faults - when an executable page is first accessed, the kernel hashes it and compares against the CodeDirectory. If hashes don’t match, the process is killed.

Note: Only the __TEXT segment (executable code) is signed. The following are NOT signed:

  • Stack
  • Heap
  • __DATA (writable data)
  • __DATA_CONST (may be signed in some cases)
  • __LINKEDIT
  • Dynamically allocated memory

Detecting code signing

It’s once again as simple as just parsing the binary headers.

bool detect_code_signing(struct DetectionResults *res, macho_t *macho) {
    struct load_command *code_sig = macho_find_command(macho, LC_CODE_SIGNATURE);

    if (code_sig) {
        res->code_signing_text = "Code signed";
        res->code_signing_status = 0;
        res->code_signing_color = COLOR_GREEN;
        return true;
    } else {
        res->code_signing_text = "Not code signed";
        res->code_signing_status = 2;
        res->code_signing_color = COLOR_RED;
        return false;
    }
}

PAC (ARM Exclusive)

What is PAC?

PAC or pointer authentication codes is a unique mitigation only available on ARM hardware. It’s a mitigation that signs control-flow pointers (function pointers and return addresses) cryptographically, thus making control flow hijacking very hard.
Since at the end of the day, most memory corruption attacks want to hijack the control flow of the program, this is one of the most powerful mitigations available to us on ARM-based platforms, which happen to be what Apple uses for their phones and recently, laptops.

How does PAC Work?

PAC works by adding the following:

  • Custom Instructions to ARM assembly which perform the pointer auth.
  • Custom accelerator circuits into the processor to assist in the cryptographic calculations necessary for PAC to work. This helps the security feature not be a burden on performance.
  • Custom Registers to the CPU, where keys are stored. Each register is 128 bits in size and inaccessible to user code.
  • Custom Encryption - Uses a new method of hashing called QARMA designed specifically to be more fast, less secure.

PAC works by utilizing the unused bits of pointer addresses (no computer ever has 2^64, or 16 exabytes of memory).
So by default, pointers look a little something like this:

0x00000002fa89efa8zz

Where there are a bunch of zeros that remain unused.
PAC makes use of this to insert a little signature, so a signed pointer might look something like this:

0xA123A312fa89efa8

This hash gets computed using the following equation:

truncate(QARMA_encrypt(key, pointer, context))

Where:

Truncate - we cannot fit the whole result into the few bits we have, so we truncate to the 16 or 24 bits available.

QARMA - Custom ARM hasing algorthim, a tweakable block cipher algorthim.

key - secret key sitting in registers which can only be set by the kernel.

context - current value of the stack pointer, so that the function pointer can only be called within the context of the stackframe it resides in. This prevents just reusing a signed pointer from somewhere else in the program. The signed pointer will not work outside the proper stackframe (execution context); the signature calculated won’t match, and the process will crash.

However, it’s important to note that PAC primarily signs instruction pointers, return addresses, and function pointers. Data pointers can be signed with PAC in some implementations, but this is limited by C language constraints (pointer arithmetic, pointer-to-integer casts, etc). Unfortunately, due to the way the C spec is defined, it’s impossible to sign all the pointers without completely breaking everything. Since C allows you to do things like pointer arithmetic and interact with pointers as a datatype, any interaction with a pointer as a datatype would cause an exception in the way PAC works.

Thus, only pointers that are generally not going to be messed around with by a C program, things like instruction pointers, we can safely sign them, since they are not going to be modified intentionally by program logic.

Detecting PAC

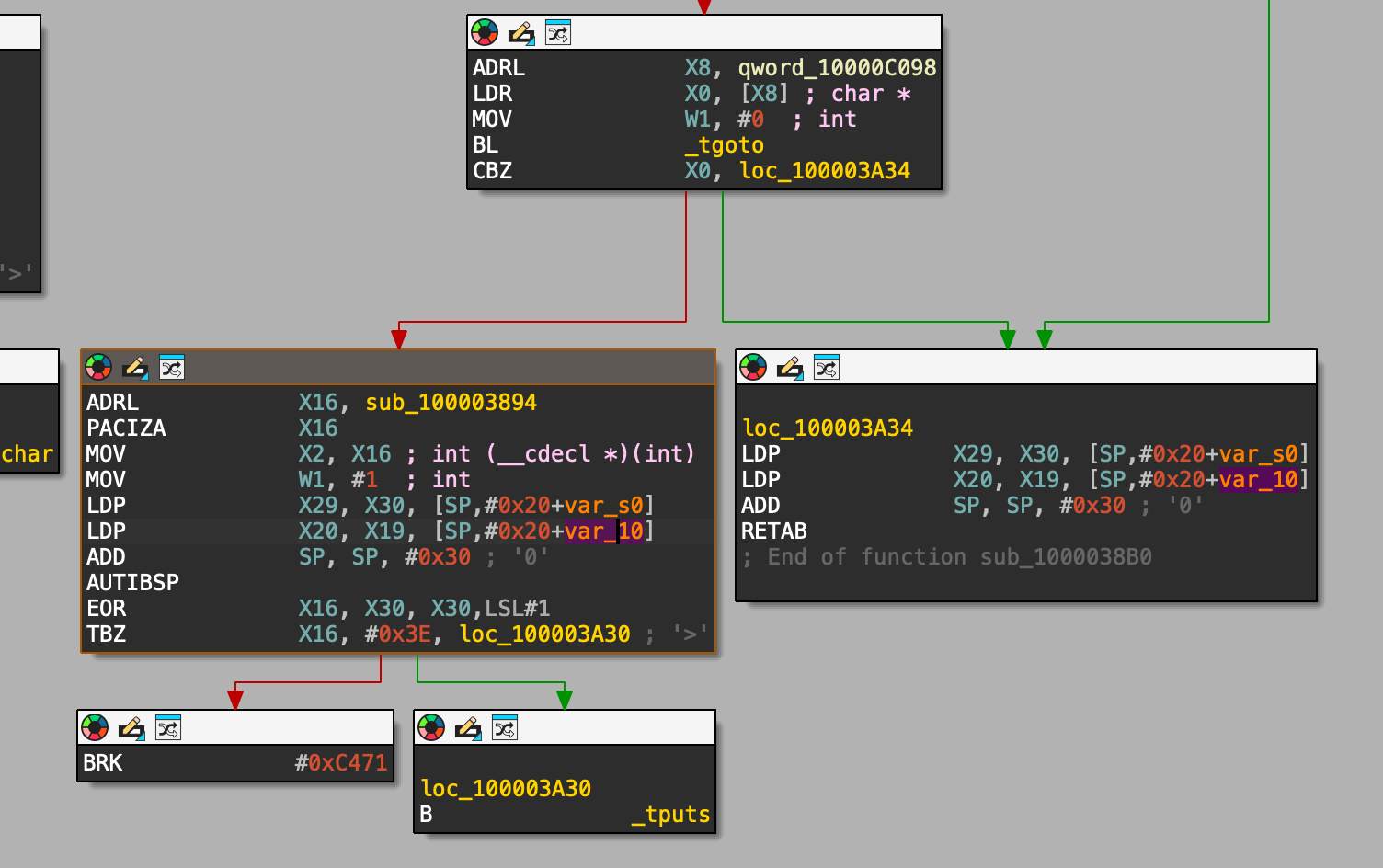

Here’s a picture of what PAC looks like in a program (/bin/ls).

As you can see, we get new cool arm instructions like

  • PACZIA (Sign pointer with context of “0”)
  • AUTIBSP (Auth Pointer using key B)

So the detection mechanism just needs to detect the new instructions. Or if the disassembler hasn’t been updated with handling these new instructions, we can just resort back to symbols.

bool detect_pac(struct DetectionResults *res, macho_t *macho) {
    // PAC (Pointer Authentication Code) is available on ARM64 devices
    uint32_t cputype = macho->is_64bit ? macho->header->cputype : ((struct mach_header *)macho->data)->cputype;

    // PAC is only available on ARM64
    if (cputype != CPU_TYPE_ARM64) {
        res->pac_text = "N/A (not ARM64)";
        res->pac_status = 1;
        res->pac_color = COLOR_YELLOW;
        return false;
    }

    // Check for PAC-related symbols
    struct symtab_command *symtab = macho_get_symtab(macho);
    if (symtab) {
        struct nlist_64 *symbols = (struct nlist_64 *)((char *)macho->data + symtab->symoff);
        char *strings = (char *)macho->data + symtab->stroff;

        for (uint32_t i = 0; i < symtab->nsyms; i++) {
            if (symbols[i].n_un.n_strx > 0 && symbols[i].n_un.n_strx < symtab->strsize) {
                char *name = strings + symbols[i].n_un.n_strx;

                // Check for PAC-related symbols
                if (strstr(name, "_ptrauth") ||
                    strstr(name, "pac_") ||
                    strstr(name, "_auth_") ||
                    strstr(name, "pointer_auth")) {
                    res->pac_text = "PAC enabled";
                    res->pac_status = 0;
                    res->pac_color = COLOR_GREEN;
                    return true;
                }
            }
        }
    }

    // Check CPU subtype for PAC capability
    uint32_t cpusubtype = macho->is_64bit ? macho->header->cpusubtype : ((struct mach_header *)macho->data)->cpusubtype;

    // Mask out feature flags to get the actual subtype
    uint32_t actual_subtype = cpusubtype & ~CPU_SUBTYPE_MASK;

    // Apple Silicon and newer ARM64 chips support PAC
    if (actual_subtype == CPU_SUBTYPE_ARM64E) {
        // Check if this binary has the PAC ABI flag set
        if (cpusubtype & CPU_SUBTYPE_PTRAUTH_ABI) {
            res->pac_text = "PAC enabled (ARM64E with PtrAuth ABI)";
        } else {
            res->pac_text = "PAC capable (ARM64E)";
        }
        res->pac_status = 0;
        res->pac_color = COLOR_GREEN;
        return true;
    } else if (actual_subtype == CPU_SUBTYPE_ARM64_V8) {
        res->pac_text = "PAC capable (ARM64)";
        res->pac_status = 0;
        res->pac_color = COLOR_GREEN;
        return true;
    }

    // Default: ARM64 device but no PAC detected
    res->pac_text = "No PAC detected";
    res->pac_status = 2;
    res->pac_color = COLOR_RED;
    return false;
}

MTE (ARM Exclusive)

What is EMTE/MTE/MIE

MTE or Memory Tagging Extension is a brand new mitigation (as of time of writing) that Apple/ARM developed to protect the pointers that PAC cannot. They both use the principle that there are unused bits in each pointer’s address we can utilize, but that’s about where the similarities end.

How MTE Works

A randomly generated 4-bit tag from hardware RNG is added to both the pointer and stored in tag memory for that allocation. Let’s give a practical example of how MTE would stop a UAF Bug. Here’s our piece of code:

char *ptr = malloc(64); // alloc chunk on heap size 64
ptr[0] = 'A'; // set value
free(ptr); //mark chunk as empty
ptr[0] = 'B';  // UAF bug (continuing the use of the chunk after it was freed, could be populated with anything now...)

Here’s what’s happening on the assembly level:

MOV x0, #64 // move size 64 to argument register for malloc()
BL malloc // call function malloc

This is our chunk allocation. Let’s assume everything worked and we get the following heap address 0x0000001234567890, moved into register x0.

IRG x0, x0

IRG stands for “Insert Random Tag”, this is the part that generates the random tag, and puts it in the unused bits of our pointer. Here’s what our pointer looks like now:

0x0300001234567890

Now, we need to tag the memory itself.

STG x0, [x0]

This is accomplished by writing the tag to a special section of RAM metadata called tag memory, that’s separate from the memory accessible to userspace. Tag memory at address 0x1234567890 now stores tag 3.

Now let’s write to the heap:

MOV w1, #'A'
STRB w1, [x0]

Now that we wrote A to the memory area tagged with 3, everything is ready! Let’s see what happens when we free:

IRG x1, x0          ; generate new random tag in x1
STG x1, [x0]        ; write new tag to tag memory
BL free

A few things just happened:

  • The memory allocation is marked as free.
  • The tagged pointer to the chunk, 0x0300001234567890 remains the same.
  • Tag memory at address 0x1234567890 gets rewritten with a new random tag, for example, 0xA.

Now let’s see what happens when the UAF is happening on the assembly level.

MOV w1, #'B'
STRB w1, [x0]

The STRB alongside other instructions like LDR automagically perform the tag check in the background. As you can see, in the UAF, there is no tag generation. And the old tag that was assigned to that heap chunk no longer matches the tag in the pointer. STRB instruction will now crash due to tag mismatch with a synchronous exception.

Detecting MTE

Detecting MTE took a bit of research work, since it’s a new mitigation. I had to extract the JavaScriptCore engine from iOS 26.1 on the new iPhone since that’s the only thing that has that mitigation right now.

bool detect_mie(struct DetectionResults *res, cs_insn *insn, size_t count, macho_t *macho) {
    // MIE (Memory Integrity Enforcement) / EMTE (Enhanced Memory Tagging Extension)
    // is only available on ARM64 devices
    uint32_t cputype = macho->is_64bit ? macho->header->cputype : ((struct mach_header *)macho->data)->cputype;

    if (cputype != CPU_TYPE_ARM64) {
        res->mie_text = "N/A (not ARM64)";
        res->mie_status = 1;
        res->mie_color = COLOR_YELLOW;
        return false;
    }

    bool has_mte_instructions = false;
    bool has_mte_symbols = false;
    int mte_instruction_count = 0;

    // Check for MTE/EMTE instructions in disassembly
    if (insn && count > 0) {
        for (size_t i = 0; i < count; i++) {
            // Check for MTE-specific ARM64 instructions
            // IRG - Insert Random Tag
            if (strcmp(insn[i].mnemonic, "irg") == 0) {
                has_mte_instructions = true;
                mte_instruction_count++;
            }
            // STG - Store Allocation Tag
            else if (strcmp(insn[i].mnemonic, "stg") == 0) {
                has_mte_instructions = true;
                mte_instruction_count++;
            }
            // ST2G - Store Allocation Tags (double)
            else if (strcmp(insn[i].mnemonic, "st2g") == 0) {
                has_mte_instructions = true;
                mte_instruction_count++;
            }
            // STZ2G - Store Allocation Tags and Zero (double)
            else if (strcmp(insn[i].mnemonic, "stz2g") == 0) {
                has_mte_instructions = true;
                mte_instruction_count++;
            }
            // STZG - Store Allocation Tag and Zero
            else if (strcmp(insn[i].mnemonic, "stzg") == 0) {
                has_mte_instructions = true;
                mte_instruction_count++;
            }
            // LDG - Load Allocation Tag
            else if (strcmp(insn[i].mnemonic, "ldg") == 0) {
                has_mte_instructions = true;
                mte_instruction_count++;
            }
            // ADDG - Add with Tag
            else if (strcmp(insn[i].mnemonic, "addg") == 0) {
                has_mte_instructions = true;
                mte_instruction_count++;
            }
            // SUBG - Subtract with Tag
            else if (strcmp(insn[i].mnemonic, "subg") == 0) {
                has_mte_instructions = true;
                mte_instruction_count++;
            }
            // GMI - Tag Mask Insert
            else if (strcmp(insn[i].mnemonic, "gmi") == 0) {
                has_mte_instructions = true;
                mte_instruction_count++;
            }
            // SUBP/SUBPS - Subtract Pointer (used with MTE)
            else if (strcmp(insn[i].mnemonic, "subp") == 0 || strcmp(insn[i].mnemonic, "subps") == 0) {
                has_mte_instructions = true;
                mte_instruction_count++;
            }
        }
    }

    // Check for MTE/EMTE-related symbols
    struct symtab_command *symtab = macho_get_symtab(macho);
    if (symtab) {
        struct nlist_64 *symbols = (struct nlist_64 *)((char *)macho->data + symtab->symoff);
        char *strings = (char *)macho->data + symtab->stroff;

        for (uint32_t i = 0; i < symtab->nsyms; i++) {
            if (symbols[i].n_un.n_strx > 0 && symbols[i].n_un.n_strx < symtab->strsize) {
                char *name = strings + symbols[i].n_un.n_strx;

                // Check for MTE/EMTE-related symbols (be specific to avoid false positives)
                if (strstr(name, "_mte_") ||
                    strstr(name, "_emte_") ||
                    strstr(name, "memory_tagging") ||
                    strstr(name, "__hwasan") ||  // Hardware-assisted AddressSanitizer uses MTE
                    strstr(name, "hwaddress") ||
                    (strstr(name, "tagged") && strstr(name, "ptr")) ||  // tagged_ptr but not just any "tagged"
                    strstr(name, "_irg") ||  // MTE instruction functions
                    strstr(name, "_stg") ||
                    strstr(name, "_ldg") ||
                    strstr(name, "_addg") ||
                    strstr(name, "_subg")) {
                    has_mte_symbols = true;
                    break;
                }
            }
        }
    }

    // Determine MIE/EMTE status
    if (has_mte_instructions) {
        char *text_buffer = malloc(128);
        if (text_buffer) {
            snprintf(text_buffer, 128, "MIE/EMTE enabled (%d MTE instructions)", mte_instruction_count);
            res->mie_text = text_buffer;
        } else {
            res->mie_text = "MIE/EMTE enabled";
        }
        res->mie_status = 0;
        res->mie_color = COLOR_GREEN;
        return true;
    } else if (has_mte_symbols) {
        res->mie_text = "MIE/EMTE enabled (symbols)";
        res->mie_status = 0;
        res->mie_color = COLOR_GREEN;
        return true;
    } else {
        res->mie_text = "No MIE/EMTE detected";
        res->mie_status = 2;
        res->mie_color = COLOR_RED;
        return false;
    }
}

As you can see, I had to use a two-pronged approach, looking for symbols and the actual disassembly from the disassembler. This detection method is actively looking for instructions in arm64 that are related to memory tagging. These instructions are brand new, and thus some disassemblers don’t support them and can’t parse them. But this is the best method of detecting it.

ARC (ObjectiveC)

What is ARC?

ARC, or Automatic Reference Counting, is a mitigation available in the Swift/Objective-C programming languages, that does reference counting in order to make UAFs harder in Objective-C and Swift, since all of the higher level objects and data structures you create are stored in the heap.

Tags

#binary analysis #analysis

Related

analysis ParagOWNED - how CVE-2025-43200 likely abused Apple Intelligence to take control of an iPhone Dec 3, 2025
