Note: This bug was disclosed to apple and someone had beat me to it. However, You might find the way I exploited it insightful. Exploit is VM only, due to SPTM/TXM locking page tables on physical Apple Silicon.

PoC: github.com/gracecondition/DirtySlide

One missing if

The bug is in vm_shared_region_slide_page_v5(), in osfmk/vm/vm_shared_region.c.

That function takes a page of the dyld shared cache and applies the ASLR slide to it. It walks a chain of pointers inside the page and rebases each one. Other places in XNU that walk an attacker-influenced chain like this check, on every step, that the pointer is still inside the page before they dereference it. The v4 path checks. The dyld chained-fixup pager checks. The v5 path does not.

Why there are five of these

vm_shared_region_slide_page() is a dispatcher. It reads the version field from the cache’s slide-info and calls one of five routines, vm_shared_region_slide_page_v1() through ..._v5():

switch (si->si_slide_info_entry->version) {
case 1: return vm_shared_region_slide_page_v1(si, vaddr, pageIndex);
case 2: return vm_shared_region_slide_page_v2(si, vaddr, pageIndex);
case 3: return vm_shared_region_slide_page_v3(si, vaddr, uservaddr, pageIndex, jop_key);
case 4: return vm_shared_region_slide_page_v4(si, vaddr, pageIndex);
case 5: return vm_shared_region_slide_page_v5(si, vaddr, uservaddr, pageIndex, jop_key);
default: return KERN_FAILURE;
}

There are five because the format dyld uses to encode which words on a page are pointers, and how to get from one to the next, has changed across architectures and OS releases. The kernel has to handle every format a live cache might be built with:

• v1: a table-of-contents plus a bitmap marking which slots need sliding. No chaining.
• v2: compressed delta chains for 64-bit caches. Each page has a start offset, and each pointer’s spare bits encode the delta to the next one.
• v3: the arm64e variant. It adds PAC-signed pointers, so chain entries carry ptrauth key and diversity metadata and the kernel re-signs each pointer as it rebases it.
• v4: a v2-shaped scheme for small (<= 1 GB) 32-bit caches, with narrower chains.
• v5: the modern arm64 format. Each slot is a dyld_chained_ptr-style word: a 34-bit runtime offset, an 8-bit high byte, an optional auth bit, and an 11-bit next field giving the 8-byte stride to the following pointer. This is the format whose page_starts[] and chain bytes the attacker supplies.

All five walk an attacker-influenced chain. The question is which of them check that the walk stays inside the page on each step. v1 through v4 and the chained-fixup pager do. v5 did not.

What the slide walker is for

New to the dyld shared cache? The primer is Apple’s own source: the dyld repository, and the dyld_cache_format.h header, where every dyld_cache_slide_info version is defined.

When a process launches, dyld maps the shared cache (one blob of all the system libraries) and the kernel slides it to a random base. The pointers baked into the cache can’t be absolute, so they are stored as a chain: each page carries a starting offset, and at that offset is a value whose high bits encode the distance to the next pointer to fix up. The kernel walks the chain, adds the slide amount to each pointer, and writes it back. When the chain ends, the page is done.

The metadata that drives this is the slide-info. Version 5 is the arm64 one, and its layout is what an unprivileged caller supplies. This is the real definition from osfmk/vm/vm_shared_region_xnu.h:

struct vm_shared_region_slide_info_entry_v5 {
    uint32_t    version;        // currently 5
    uint32_t    page_size;      // 16384
    uint32_t    page_starts_count;
    uint64_t    value_add;
    uint16_t    page_starts[] /* page_starts_count */;
};

page_starts[i] is where the walk begins on page i. It is a raw uint16_t copied in from userspace.

The guard that isn’t there

This is the rebase loop, verbatim from the xnu-12377.120.72 source (vm_shared_region_slide_page_v5, ptrauth bitfield comments removed for length):

uint8_t* rebaseLocation = page_content;
uint64_t delta = page_entry;                 // page_starts[pageIndex], attacker-controlled u16
do {
    rebaseLocation += delta;
    uint64_t value;
    memcpy(&value, rebaseLocation, sizeof(value));
    delta = ((value & 0x7FF0000000000000ULL) >> 52) * sizeof(uint64_t);

    uint64_t    high8 = (value << 22) & 0xFF00000000000000ULL;
    bool        isAuthenticated = (value & (1ULL << 63)) != 0;

    value = (value & 0x3FFFFFFFFULL) + value_add + slide_amount;
    if (isAuthenticated) {
        /* ... PAC re-sign, then ... */
        memcpy(rebaseLocation, &value, sizeof(value));
    } else {
        value += high8;
        memcpy(rebaseLocation, &value, sizeof(value));
    }
} while (delta != 0);

rebaseLocation starts at page_content. The first delta is page_starts[pageIndex], attacker-controlled. Every later delta is decoded from the eight bytes the loop just read, and those bytes live in the page I supplied, so they are attacker-controlled too. Nothing in the loop checks that rebaseLocation is still inside [page_content, page_content + PAGE_SIZE).

So I can put the first hop near the end of the page, set a value whose high bits say “keep going”, and the loop steps rebaseLocation past the page and does its read-modify-write in whatever kernel frame sits next door. That is an out-of-bounds read and write, 8 bytes at a time, into adjacent kernel memory, with the written value mostly under my control.

For comparison, the chained-fixup pager (osfmk/vm/vm_dyld_pager.c, fixupPage64) does the bound check, verbatim:

if ((uintptr_t)chain < contents || (uintptr_t)chain + sizeof(*chain) > end_contents) {
    printf("%s(): chain 0x%llx out of range 0x%llx..0x%llx\n", __func__,
        (long long)chain, (long long)contents, (long long)end_contents);
    return KERN_FAILURE;
}

That is the bug. v5 was missing this if.

Reaching the bug unprivileged

The first time I drove this path, it was through a route only the development kernel exposes. That proves the bug exists but says nothing about reachability on a stock machine, so on its own it is not an unprivileged bug. The part that makes it unprivileged came after: an ordinary, ad-hoc-signed, unentitled process can reach the same code by shimming out libSystem.

The slide walker is reachable from syscall 536, shared_region_map_and_slide_2_np, in bsd/vm/vm_unix.c. There is no suser check, no priv_check, and no entitlement gate. It copyin()s the slide-info from the caller, and in the vulnerable build it only checks the structure, never the page_starts[] values against the page. Any process can call it.

There is one catch. vm_shared_region_map_file() only accepts a mapping into a region whose sr_first_mapping == -1, a fresh region that nothing has populated. A normally-launched process already inherited a cache-populated region, so its 536 bounces. I needed a process that reaches the syscall with a fresh region.

The way to do that is to make dyld never map the real cache. The PoC spawns its child with two shim dylibs, a hand-rolled fake_libdyld.cpp (just enough of the dyld4 ABI to satisfy the loader) and a minimal fake_libsystem.c, and points DYLD_SHARED_CACHE_DIR at a path that doesn’t exist. dyld resolves libSystem and libdyld from the shims, finds no cache to map, and leaves the reslide region empty. Spawning the child with _POSIX_SPAWN_RESLIDE makes its own call to 536 land in a fresh region, and the OOB fires.

The child is a plain, ad-hoc-signed binary with no entitlements. No debugger, no task_for_pid, no Developer Mode.

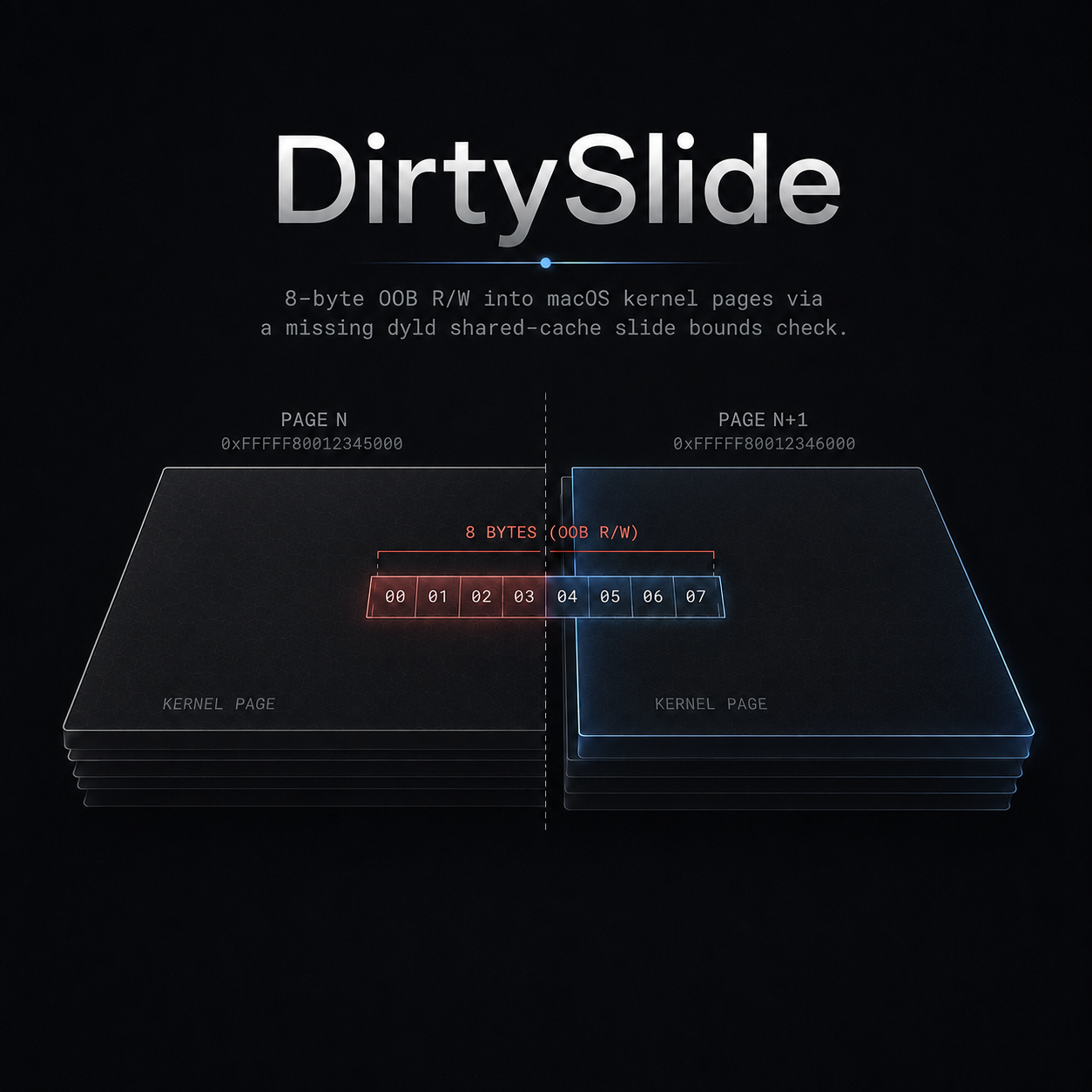

From 8 bytes to all of physical memory

An 8-byte OOB write into the next frame is not root by itself. You have to decide what is in that frame and make the write count.

On arm64 the target is a page-table page. If I groom the kernel so a leaf page-table page lands physically adjacent to the slide destination, the OOB write lands on a page-table entry instead of on data. A PTE I control maps a virtual page I own onto a physical frame I choose.

So: groom until a page-table page is the neighbour, build the v5 slide-info so the OOB write forges a controlled PTE, and now one of my virtual pages points at arbitrary physical RAM. Rewrite that PTE repeatedly, moving the aperture across physical memory in 32 MB windows, and I have read/write over all of physical memory through one virtual page.

The exploit, end to end

A full run is nine steps:

1. Reach the syscall. Spawn a child with the shim dylibs (fake_libdyld / fake_libsystem) and DYLD_SHARED_CACHE_DIR pointed at a path that doesn’t exist, so dyld maps no real cache and the reslide region stays empty. The child is plain, ad-hoc-signed, unentitled.
2. Get a fresh region. Spawn with _POSIX_SPAWN_RESLIDE so the child’s call to 536 (shared_region_map_and_slide_2_np) lands in a region whose sr_first_mapping == -1.
3. Slide off the page. Build v5 slide-info whose page_starts[i] puts the first hop near the end of the page, with a chain value carrying a non-zero next, so the walker steps rebaseLocation past page_content + PAGE_SIZE and does its read-modify-write in the next frame.
4. Make the neighbour a page table. Groom kernel allocations so a leaf page-table page lands physically adjacent to the slide destination.
5. Forge a PTE. Pick the written value so the clobbered PTE maps a virtual page I own onto a physical frame I choose.
6. Get full physical R/W. Rewrite that PTE, moving the aperture across physical memory in 32 MB windows.
7. Find the credential. Sweep physical RAM through the aperture for the posix_cred with my uid == ruid == svuid == 501.
8. Set uid 0. Zero the uid/gid fields in place.
9. Hold the win. Park the corrupted process in select() so its pmap is never torn down, and chown + chmod 04755 a clean suidwrap helper so a fresh process can exec a root shell.

The grooming primitive, spray counts, PTE bit layout, and window-stepping loop for steps 4 to 6 are in the exploit source. I am not transcribing offsets into prose here.

Finding the credential

With physical read/write, the target is small: my own process credential. On XNU that is a posix_cred, the cr_posix sub-structure of struct ucred, and mine has uid == ruid == svuid == 501, the default first user on macOS.

I scan physical RAM through the PTE aperture, 32 MB at a time, for the credential matching that uid triple. When the scan finds it, I zero the uid and gid fields in place. The process is now uid 0. The PoC prints oracle post getuid=0x0000000000000000.

Keeping root without panicking

By the time the write lands, my address space is corrupt. I have forged PTEs in my pmap for hundreds of writes; the moment the process exits, execs, or unmaps anything, the kernel walks that pmap to tear it down, reads a forged entry as a real PTE, and panics. Winning and touching anything are the same action.

Two things solve it. First, the winning process does not tear itself down: it calls select(0, NULL, NULL, NULL, NULL) and blocks, holding its pmap open. Second, the root shell goes to a clean process. While briefly uid 0, the exploit chowns and chmod 04755s a small staged helper (suidwrap), making it setuid-root on disk. A fresh uid-501 process that execs that helper gets a real root credential from the kernel, with none of the corruption.

sh-3.2# id
uid=0(root) gid=0(wheel) groups=0(wheel),1(daemon),...,204(_developer)...
sh-3.2# uname -a
Darwin ... root:xnu-12377.120.72.0.4~13/RELEASE_ARM64_VMAPPLE arm64

(Un)Reliability

The trigger itself is reliable and the uid-0 cred patch is reproducible. The physical scan is not: it rewrites a live PTE hundreds of times and reads arbitrary frames, which destabilizes the pmap and panics the kernel on nearly every run. The success rate is low, on the order of 10 percent.

The reason is that the exploit runs blind. It never learns a real kernel address. It grooms until a page table is probably the neighbour, fires the OOB write where it should be, and sweeps physical memory for the credential. Each of those guesses is a place a run can panic. The missing primitive is an information leak: anything that returns a real kernel pointer, or tells me where a page-table page landed. With a leak to aim by, the grooming collapses into one deterministic write at a known target, and one-in-eight becomes close to certain. An additional kernel infoleak primitive would massivley improve reliability.

There is also collateral in the panics. The slide spray leaves my marker value in the empty slots of other page tables, and an async kernel walk occasionally reads one as a malformed compressed PTE and panics at pmap.c:5189. While I hold physical R/W I also scrub: sweep RAM and zero every qword equal to the marker before it is misread. The value is a -0x4000 sentinel, so nothing live looks like it.

The fix Apple shipped

I checked 26.5.2 (25F84, xnu-12377.121.10) by pulling the release kernelcache with ipsw and reversing the slide path out of the stripped binary. The bug is closed in two places.

The per-step bound, now in the walk. This is the v5 walk as it ships in 26.5.2, verbatim reverse-engineered Hex-Rays output (locals renamed, otherwise unedited):

delta = *page_starts_ptr;
if ( delta != 0xFFFF )
{
    page_offset = 0;
    value_add_slide = *(_QWORD *)(slide_info + 16) + *si;
    kva_to_uva = uservaddr - page_content;
    while ( 1 )
    {
        page_offset += delta;
        if ( page_offset > 0x3FF8 )           // 0x4000 (16K page) - 8
            return 5;                         // KERN_FAILURE
        rebaseLocation = (unsigned __int64 *)(page_content_base + (int)page_offset);
        if ( page_offset != (int)page_offset )
            rebaseLocation = (unsigned __int64 *)((page_content_base + page_offset) & 0xFFFFFFFFFFFFLL
                                                | 0x2BAD000000000000LL);
        value = *rebaseLocation;
        rebased = value_add_slide + (*rebaseLocation & 0x3FFFFFFFFLL);
        if ( (*rebaseLocation & 0x8000000000000000LL) != 0 )
        {
            // ... auth / PAC re-sign branch ...
            *rebaseLocation = rebased;
        }
        else
        {
            *rebaseLocation = rebased + (value >> 34 << 56);
        }
        delta = (value >> 49) & 0x3FF8;       // next hop
        if ( !delta )
            break;
    }
}

page_offset is the running distance from the start of the page. It is checked against 0x3FF8 (PAGE_SIZE - 8) before every dereference. As soon as the chain tries to step past the last 8-byte slot, the walker returns KERN_FAILURE. The v3 path got the same treatment, bounded against 0xFF8 for its 4 KB page.

The page_starts[] check at map time. vm_shared_region_slide_sanity_check_v5 now iterates the start table and rejects any entry that points out of the page or is misaligned, before the walker runs. Heres The IDA output:

page_starts_count = (unsigned int)slide_buf[2];
if ( 2 * page_starts_count + 24 > slide_info_size )
{
    printf("vm_shared_region_slide_sanity_check_v5: required_size != slide_info_size 0x%llx != 0x%llx\n");
    goto LABEL_61;
}
if ( (_DWORD)page_starts_count )
{
    for ( j = 0; page_starts_count != j; ++j )
    {
        start = *((unsigned __int16 *)slide_buf + j + 12);
        if ( start != 0xFFFF )
        {
            if ( start >= 0x3FF9 )            // must point inside the 16K page
            {
                printf("vm_shared_region_slide_sanity_check_v5: page_starts[%u] exceeds valid range. %u > %lu\n");
                goto LABEL_61;
            }
            if ( (start & 7) != 0 )           // must be 8-byte aligned
            {
                printf("vm_shared_region_slide_sanity_check_v5: page_starts[%u] is not aligned. %u\n");
                goto LABEL_61;
            }
        }
    }
}

Neither check exists in the vulnerable source, and neither string is in the xnu-12377.120.x / .121.6 kernels I tested. Both appear for the first time in the 25F84 kernelcache. The walk bound alone closes the OOB; the page_starts[] check rejects a bad first hop before the walk starts.

Beaten to the patch

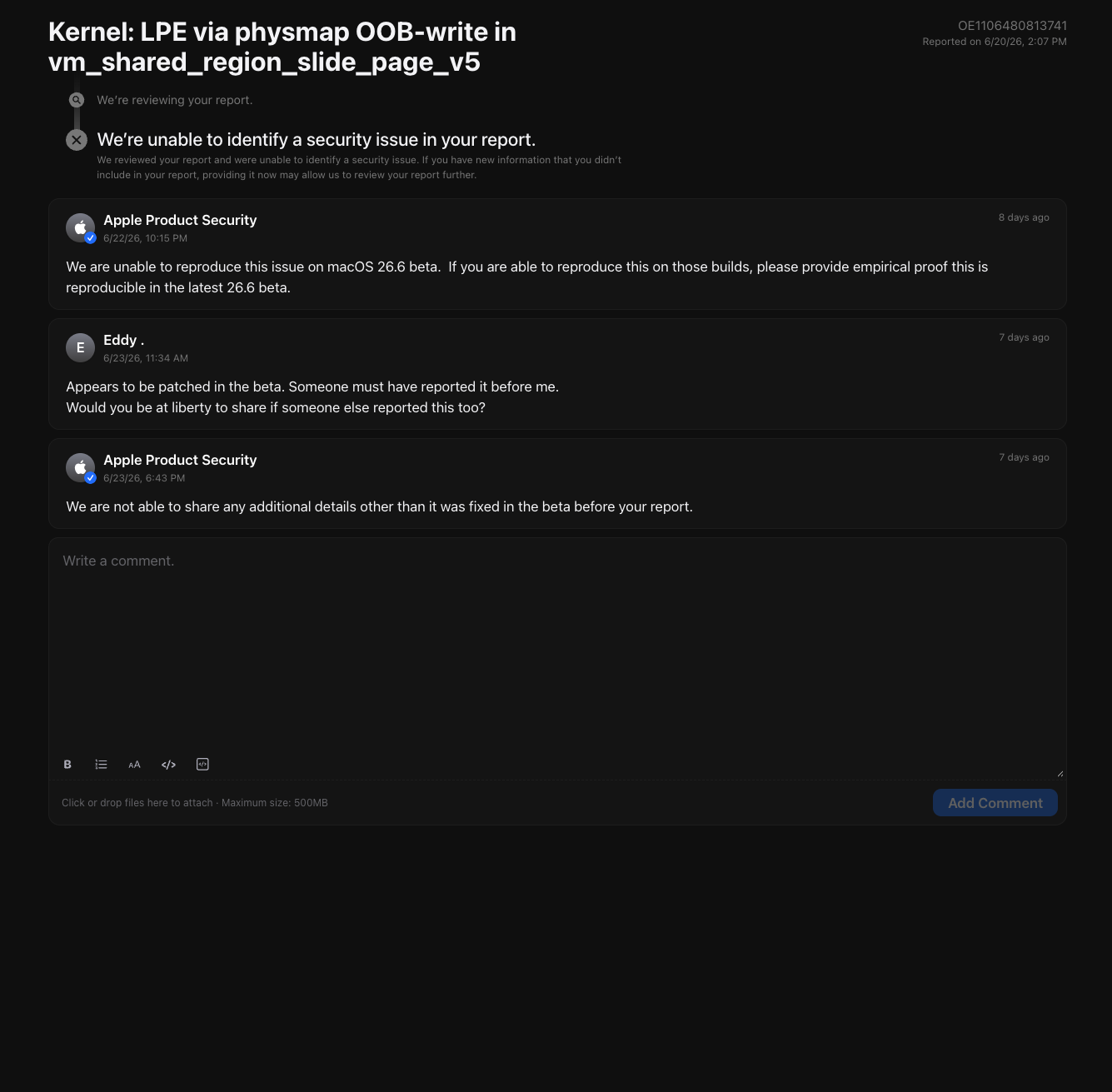

I reported this to Apple Product Security on 6/20, report OE1106480813741, “Kernel: LPE via physmap OOB-write in vm_shared_region_slide_page_v5”.

Can this be used to jailbreak the iPhone?

In its current state, probably not. Triggering 536 in the vulnerable context needs an application sandbox bypass.

It also needs an SPTM (Secure Page Table Monitor) bypass, and there is little public information on bypassing SPTM. Even before the patch, this exploit only worked on macOS virtual machines.

*Vulnerable build exploited: macOS 26.5 beta (25F5042g), xnu-12377.120.72.0.4~13/RELEASE_ARM64_VMAPPLE, arm64. Fix verified in: macOS 26.5.2 (25F84), xnu-12377.121.10.
